Sense-U® Video (Outdoor): User Manual

Updated
Not yet followed by anyone

1 READ ME FIRST

  1. The Sense-U Video camera, and the Sense-U Smart Baby Monitor are not medical devices, and are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of disease.
  2. Only 2.4GHz private WiFi networks are supported. Hotspot WiFi and 5GHz WiFi are not supported.
  3. Make sure your mobile device is running iOS 9.0 & up, or Android 4.3 & up.
  4. Enter correct WiFi network ID, password and make sure your mobile device in the same WiFi network before pairing to the Sense-U Video camera.
  5. If the indicator light keeps flashing GREEN after pairing, most likely the WiFi password or network connection is not right; If the indicator light is solid GREEN after pairing, log out and log in again to check the status of the Video camera.
  6. To pair a connected Sense-U Video camera to a new account, you need to delete it first by tapping “Delete” button from the Sense-U Baby app->Video Device Settings (setup icon on the home page)->Delete first.
  7. For audible notifications, notifications need to switch on for the Sense-U app in Settings->Notifications->Sense-U Baby. For Android device, make sure Media Volume is switched on in Settings->Sounds and Vibration->Volume. For iOS device, make sure your mobile device is not in Do Not Disturb mode.
  8. For two-way audio, please turn on the Camera and Microphone permissions in Settings->Apps->Sense-U Baby->Microphone & Camera and tap speaker and microphone icons in the app to enable it.
  9. DO NOT adhere the Sense-U Video camera on a ROUGH wall in case it falls and hurts your child.

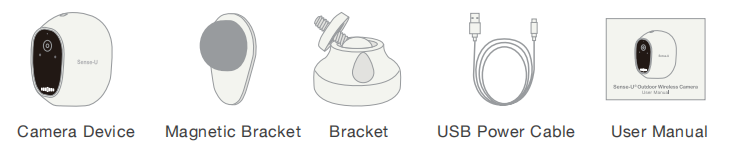

What’s in the Box

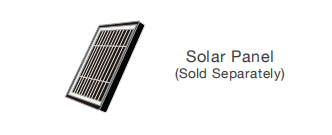

Optional Parts


2 QUICK START GUIDE

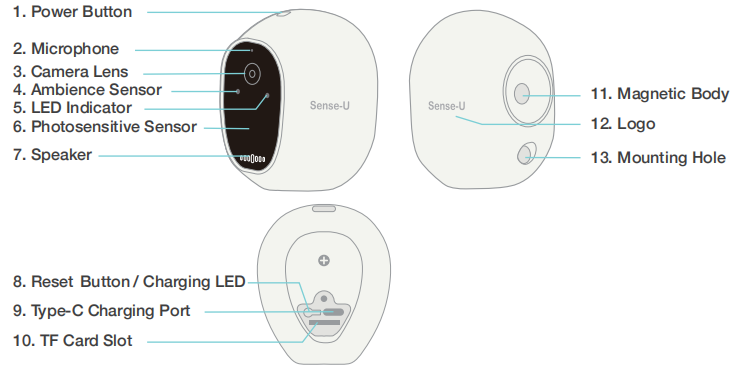

2.1 Product Overview


2.2 Setting up the Sense-U Outdoor Camera

2.2.1 Charge / Power on the Device

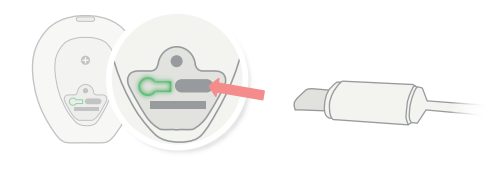

1. The Sense-U Outdoor camera is battery-powered and needs to be charged for at least 3 hours before using. Charge it with the enclosed type-C power cord and 5V / 1A adapter. The charging indicator should show solid GREEN during charging and will switch off when fully charged.

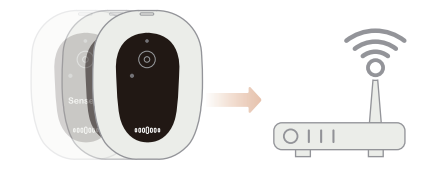

2. Move the Sense-U camera device close to your WiFi router and make sure you are able to connect to internet.

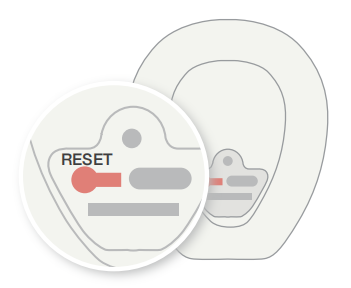

3. Power on the device by pressing the Power button. The Sense-U device should flash RED or a prompt tone is heard, indicating it is waiting for pairing. If not, long press the Reset button for 3 seconds to reset.


2.2.2 Set up the Sense-U App


  1. Download the free Sense-U Baby app, available for iOS and Android from the Apple App Store and Google Play.
  1. Allow all requested permissions for the Sense-U app, e.g Location, Bluetooth, no optimization of battery usage, etc.
  1. Create a free Sense-U account.

2.2.3 Pair the Device

  1. Choose the Device

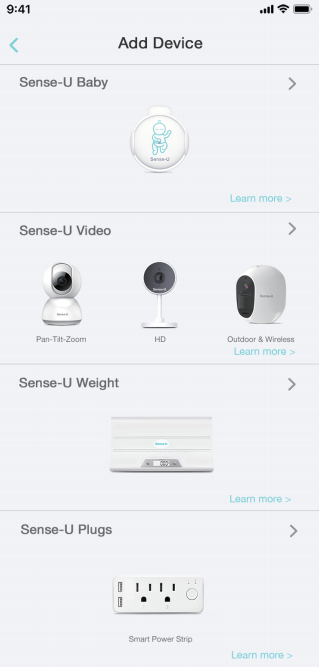

Add the device from the Sense-U app->Setup->Add Device.

* Select the child or object you want to assign this device to.


  1. Connect to the WiFi

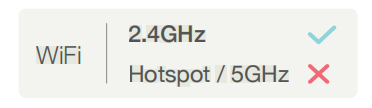

Choose your 2.4GHz WiFi network and enter the password.

* 5GHz WiFi and hotspot WiFi networks are not supported.

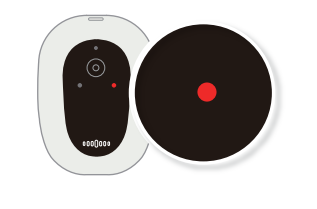

Power on the device by pressing the Power button. The device should flash RED or a prompt tone is heard, indicating it is waiting for pairing. If not, long press the Reset button for 3+ seconds to reset.

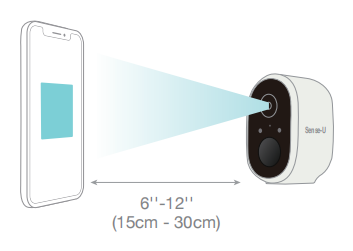

  1. Scan the QR code

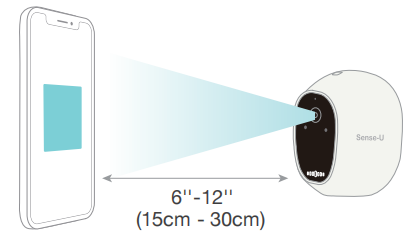

Place the QR code on the app in front of the device, within a distance of 6''-12'' (15-30 cm). The LED indicator will change from flashing RED to solid BLUE and a prompt tone is heard, meaning the device has been paired successfully.

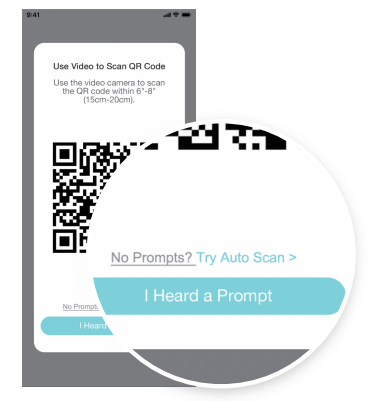

* If no prompt, try Auto Scan following the onscreen instruction.


  1. Stream the Video

When the device is successfully paired, the Sense-U app will vibrate once and redirect to the home screen.

* "Unable to pair" Error: Follow the instruction and send us the bar code image. Allow one business day for us to unlink the camera from your account.


2.3 Mounting the Device

2.3.1 Select a Location

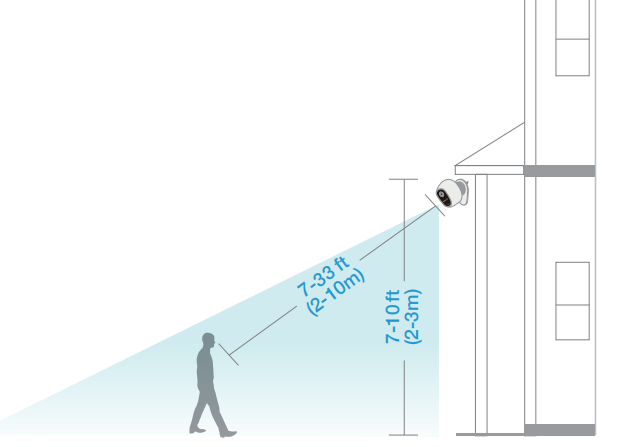

The camera can be mounted both outdoors and indoors, on a wall or a ceiling. Select a location where you can get the desired view. We recommend hanging it 7-10 feet (2-3 meters) above the ground.

The ideal viewing distance is 7-33 feet (2-10 meters), which allows a person to be recognized.

* To maximize the solar panel efficiency, select a location where the solar-powered camera can receive more sunlight.


2.3.2 Ideal Installation Angle

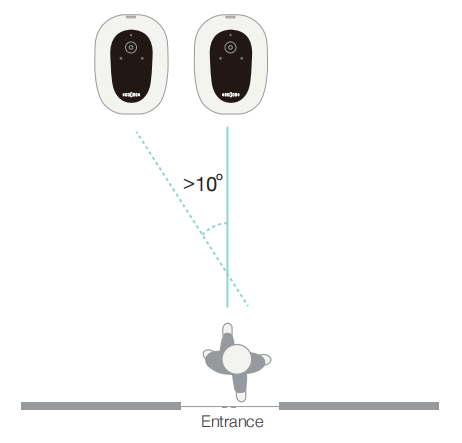

When installing the camera, please install the camera angularly (the angle between the sensor and the detected object is larger than 10° for effective motion detection.

If the moving object approaches the PIR sensor vertically, the sensor may not be able to detect the motion events.

Tips:

. The PIR sensor's detecting distance: 20feet (6 m), in default.

. The PIR sensor's detecting angle: 120o (H)


2.3.3 Mount the Device

There are 2 fixing methods:

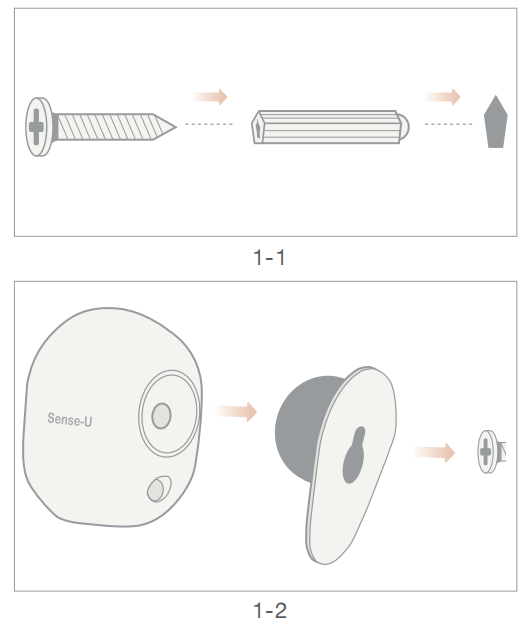

Magnetic Bracket:

  1. Drill a hole with a suitable drill bit.
  2. Insert a screw and tighten it. Hang the magnetic bracket on the screw. Rotate the camera to adjust the view and check it using the live stream in the Sense-U app.

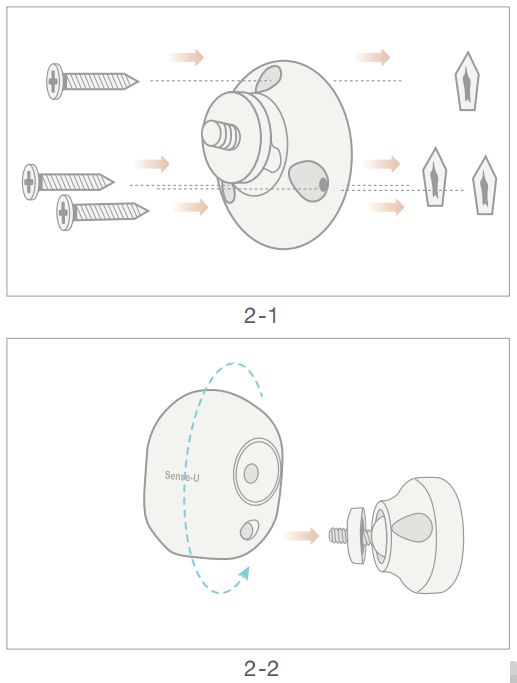

Bracket:

  1. Place the mounting bracket against the wall. Drill holes with a suitable drill bit.
  2. Firmly screw the camera to the mounting bracket. Rotate it to adjust the view.


3 OPERATIONS

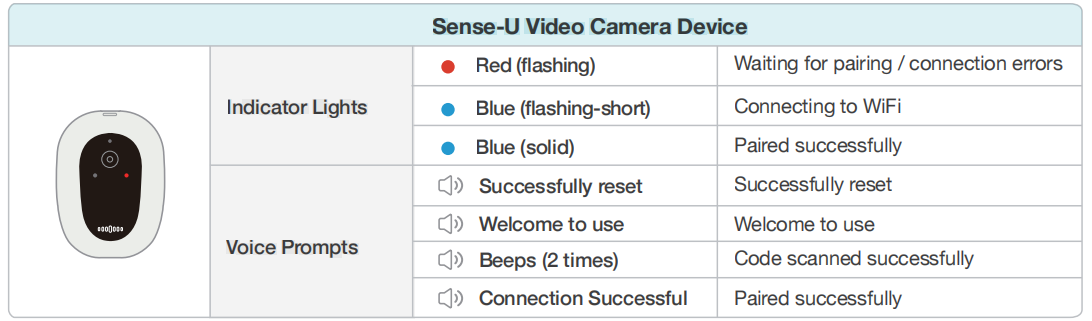

3.1 Indicator Lights


3.2 Sense-U App at a Glance

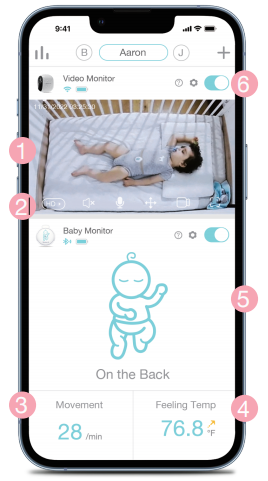

Home Screen

  1. Video Section

HD / SD: High/standard video quality

  1. Video Functions

Mic: Enable to talk

Speaker: Enable to hear

Full-screen: Switch to full screen mode

  1. Movement

Reading

< 5/min: Weak movement detected

Footprint Icon: wiggle movement detected

  1. Feeling Temperature: Measure feeling temperature around belly button.
  2. Sleeping Position: On the Back, Right Side, Sit Up, Left Side. On the Stomach
  3. On/Off Button

* Please allow ten or more (10+) minutes before the displayed temperature reading reaches a stable value.

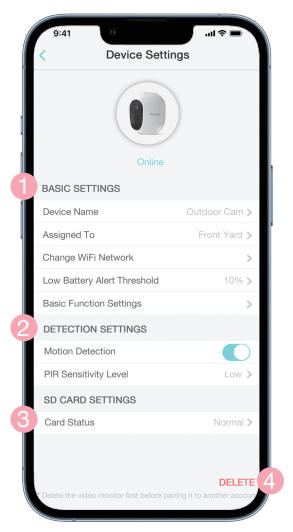

Device Settings

  1. BASIC SETTINGS

Device Name: The name of your device

Assigned To: A child, a nursery room, or any object that the device is used to monitor, or the location where the device is located

Change WiFi Network: Update WiFi UUID or password

Low Battery Alert Threshold: Custom setting low battery alarm threshold

Basic Function Settings: Status Indicator, Flip Screen, Time Watermark, Video Quality, IR Night Vision, etc

  1. MOTION SETTINGS

Motion Detection: receive notification when motion is detected

PIR Sensitivity Level: the higher the level, the smaller motion can be detected

  1. SD CARD SETTINGS Card Status: Normal / Abnormal / Unavailable
  2. DELETE: Delete before pairing a connected device to another account.

4 TROUBLESHOOTING

  1. The indicator light keeps flashing Green and was unable to pair


If the indicator light keeps flashing GREEN after pairing, most likely the WiFi password you entered or network connection is not right. Restart the power of your device until the indicator light changes to flashing RED and try again.

  1. What’s the Wireless Range?


The WiFi distance between Sense-U Video camera and your router can be up to 300 feet (92m) depending on the location of your home router and the environment. You can check the video on mobile device from anywhere, as long as cellular data network is available.

  1. The indicator light is in solid Green after pairing but I received timeout error

Log out and log in again to update the status of the device.

  1. The device cannot connect to my WiFi network.


Make sure the WiFi password you entered is correct and the network connection is good. Move the device and mobile device closer to the router and try again. Only 2.4GHz WiFi networks are supported (Hotspot WiFi and 5GHz WiFi networks are not supported).

  1. The indicator light is in solid Green when I pair it to a new Sense-U account


To pair a connected Sense-U Video device to a new account, you need to delete it first by tapping “Delete” button from the Sense-U Baby App->Video Device Settings (setup icon on the home page)->Delete first. Alternatively, you can press the Reset Button on the back of the device using a reset pin until the device starts to beep, and try again.

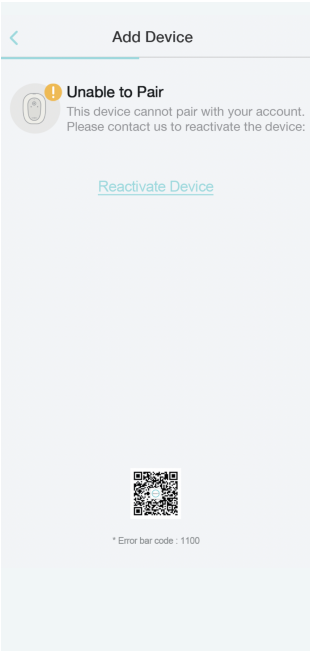

  1. I got “unable to pair” error with a bar code


For security purpose, to pair a connected device to a new Sense-U account, the device needs to be removed from current account first by tapping the Sense-U app->Setup->Manage Devices->Sense-U Video->Device Info(Three Dots)->Delete.
Send us an email with the error bar code you received to reactivate the device.

  1. There is no audible notification when notification goes off


To receive audible notifications, notifications need to switch on for the Sense-U Baby App in Settings->Notifications->Sense-U Baby. For Android device, make sure Media Volume is switched on in Settings->Sounds and Vibration->Volume. For iOS device, make sure your mobile device is not in Do Not Disturb mode.

  1. I cannot hear or speak to my child in the Sense-U Baby app.

For two-way audio, please turn on the Camera and Microphone permissions in Settings->Apps->Sense-U Baby->Microphone and Camera and tap the speaker and microphone icons in the app to enable it.

5 DISCLAIMER

The Sense-U Video Camera, and the Sense-U Smart Baby Monitor are not medical devices and are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of disease. Customers use this device at their own risk and Sense-U Inc., its members, employees, agents, contractors, representatives, manufacturers, distributors and associates shall not be held liable for any loss, damage or injury suffered by the customer or any other person arising from, or in connection with, the use or manufacture of the device, including loss, damage or injury suffered by the customer or any other person as a result of any defects in respect of the monitor, and all warranties, and any other liability from whatsoever cause arising, are hereby excluded and the customer hereby indemnifies Sense-U Inc. in respect of any such liability.

6 GUARANTEE

Sense-U promises a 30-day Money Back Guarantee for this product and a 1-year Limited Warranty from the original date of purchase, verified by a sales receipt. Our warranty liability shall be limited to replacing the unit free of charge and does not include transport costs. Our guarantee extends to all countries in which this product is supplied. By the act of operating this product, the user accepts all resulting liability. We reserve the right to modify the provisions of this guarantee at any time without notice. This guarantee does not cover the battery, incorrect application, tampering, misuse or transport damage.

7 CONTACT US

For product questions, we recommend contacting us directly via in-app Feedback following the Sense-U Baby App->Setup->Help->Feedback. It includes your device / app information and will greatly expedite the diagnosis process. For general questions, please email us at SUPPORT@SENSE-U.COM.
